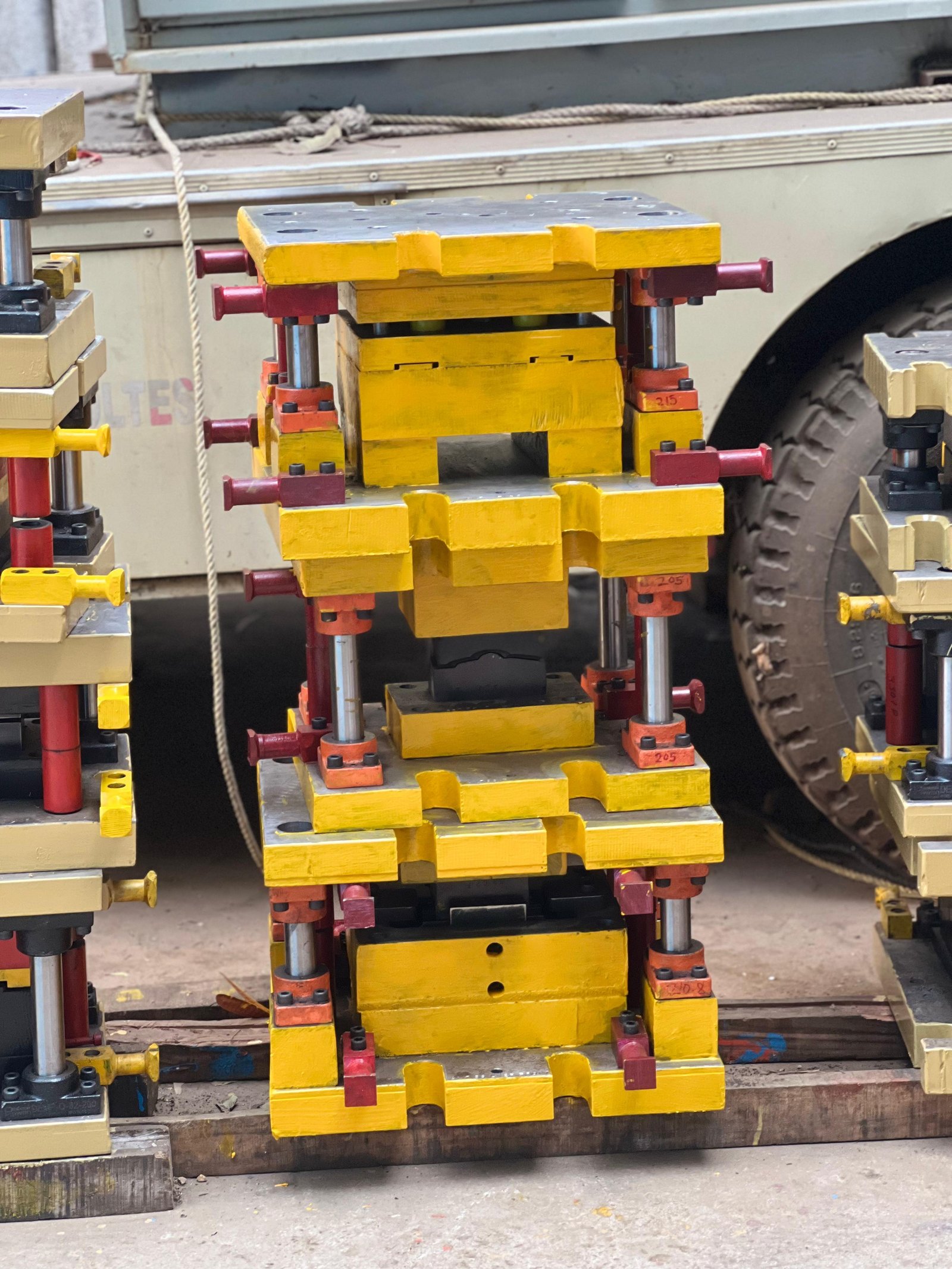

Press Tool Die

Press Tool Die

A Press Tool Die is a specialized tool used in the manufacturing process of shaping, cutting, or forming sheet metal through the application of a press machine. Press tool dies are crucial in various industries, especially for high-volume production processes. They are used to create a wide range of parts, such as automotive components, consumer goods, and industrial products.

Key Functions of Press Tool Dies:

Press tool dies are designed for performing specific operations on sheet metal, which include:

  • Cutting: The die cuts the sheet metal into predetermined shapes.
  • Bending: The die bends the metal sheet to form specific angles or contours.
  • Stamping: Stamping refers to the process of pressing the sheet metal to form patterns or designs.
  • Punching: A punch is used to make holes in the sheet metal.
  • Drawing: The die pulls the metal sheet into a mold to form deep or complex shapes (common in automotive body parts).
  • Forming: The die applies force to shape the metal into a desired form by stretching or compressing it.

Applications of Press Tool Dies:

  • Automotive Manufacturing: Press tool dies are used to create car body panels, chassis parts, engine components, and other structural components. These parts are made with high precision, as they must meet stringent safety standards.
  • Consumer Electronics: Dies are used to form the metal casings and internal components for products such as computers, televisions, mobile phones, and household appliances.
  • Aerospace: Press tool dies are critical for the production of lightweight, high-strength components used in aircraft and spacecraft, such as fuselage parts, brackets, and landing gear components.
  • Construction: Sheet metal components such as roofing panels, frames, and structural elements are often made using press tool dies.
  • Medical Devices: Press tools are used to create metal components for medical devices, surgical instruments, and diagnostic equipment.
  • Furniture: Press tool dies are used to form metal parts for furniture, including structural components and decorative elements.

Maintenance of Press Tool Dies:

Proper maintenance ensures a long lifespan and efficient performance of press tool dies:

  • Cleaning: Remove any metal shavings, debris, or oil to prevent buildup, which could affect the precision of the die.
  • Lubrication: Proper lubrication ensures smooth movement of die components and minimizes wear and tear.
  • Inspection: Regular inspections should be performed to check for wear, cracks, or damage. Any issues should be addressed immediately to prevent further damage.
  • Repairs: Over time, dies may require repairs or regrinding to maintain their precision and effectiveness.
